Dimension Manager

Dimension Manager is used to measure the distance between walls or assets.

Create Dimension After selecting Create dimension, a record will be created with the given timestamp name.

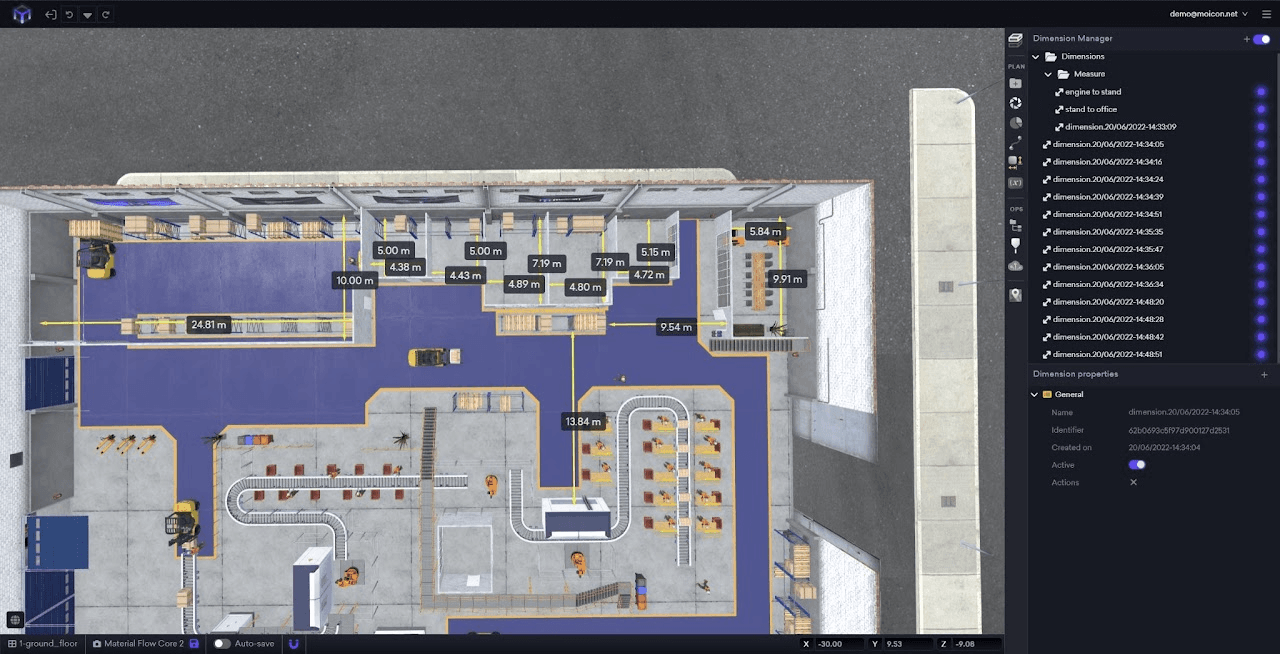

Place dimensions in the model viewport.

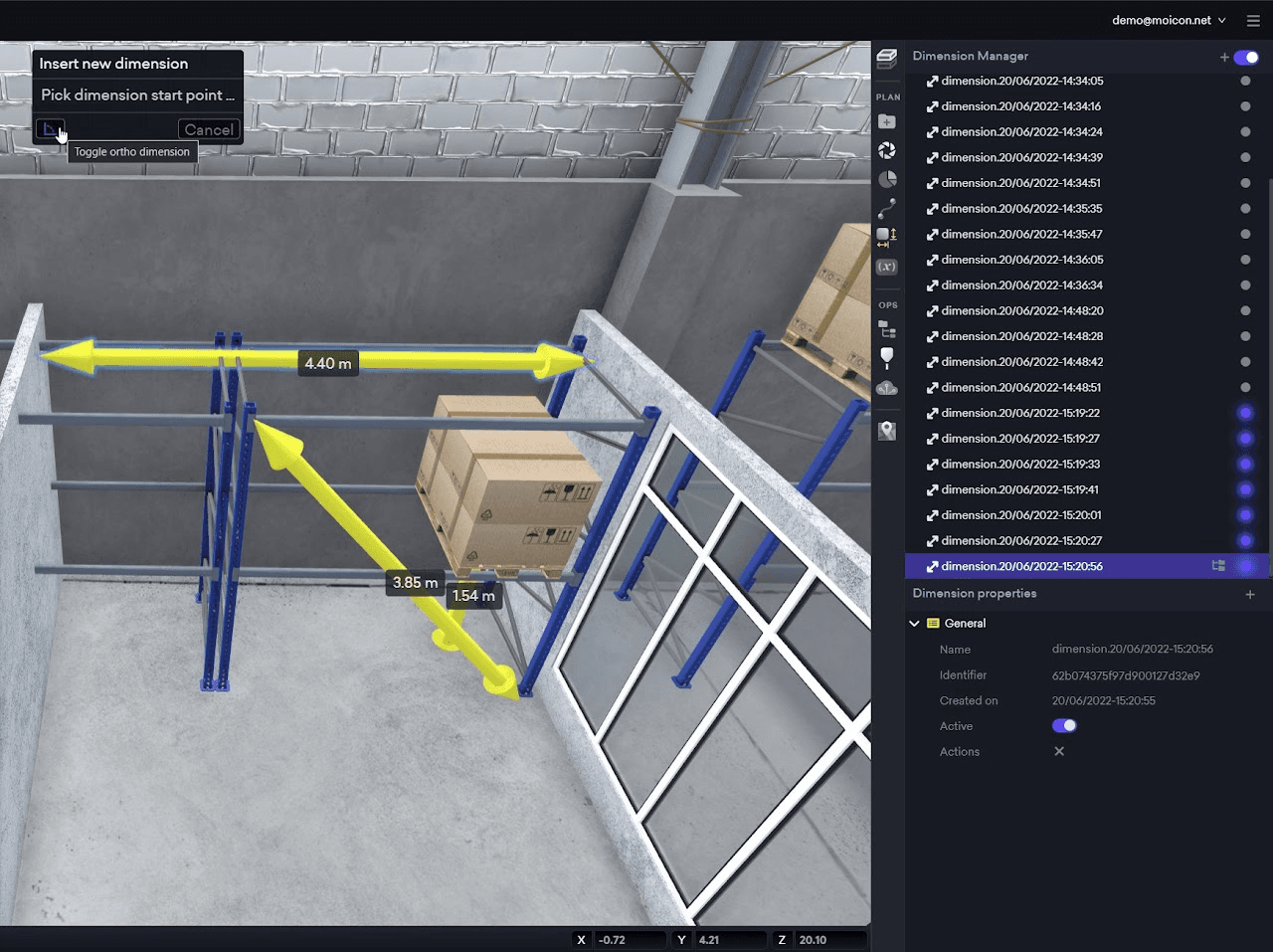

Measure orthogonally height/width or diagonal sizes.

Properties

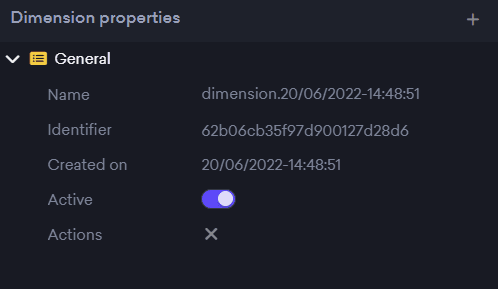

Select a Dimension record, the dialog allows you to change properties:

• Name: When naming your Dimension, give it a name that will make it easy to find.

• Active: Make path visible on viewport.

• Actions:

  • Delete: delete path

During creation of Dimension:

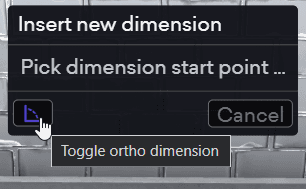

• Toggle ortho dimension: switch between free in all degrees of freedom or orthogonally measurement

• Cancel: abandon the current measurement

Toggle Visibility

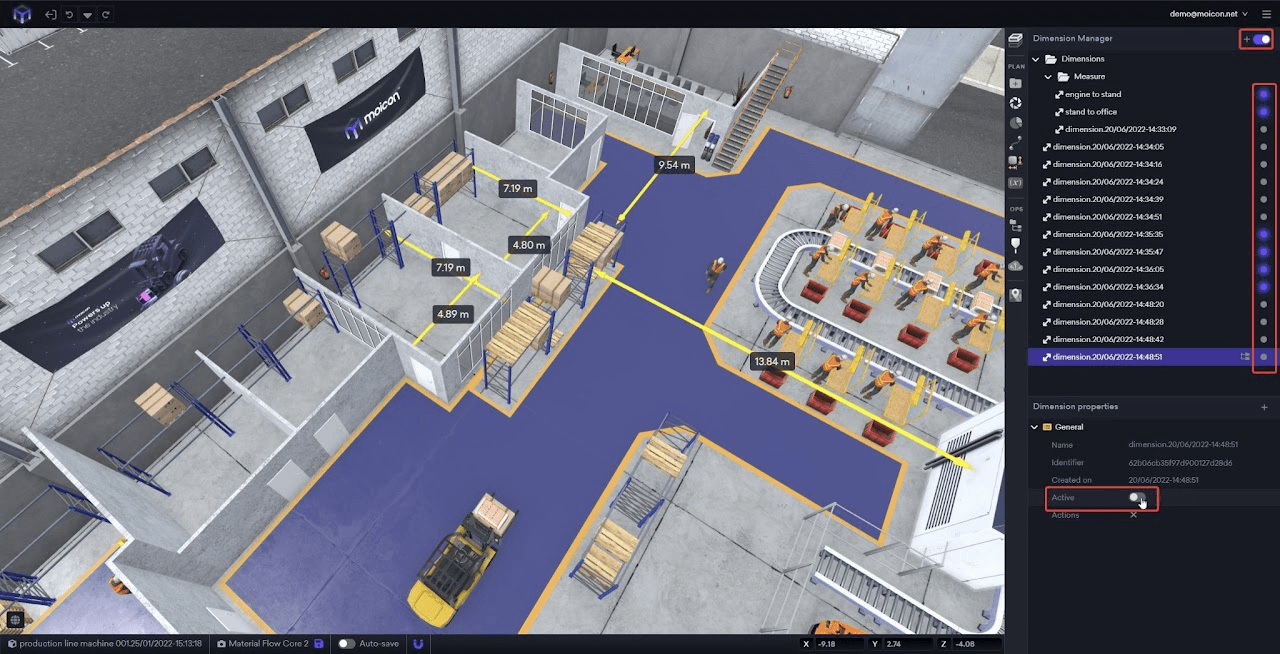

Set global or specific visibility of dimensions on viewport.

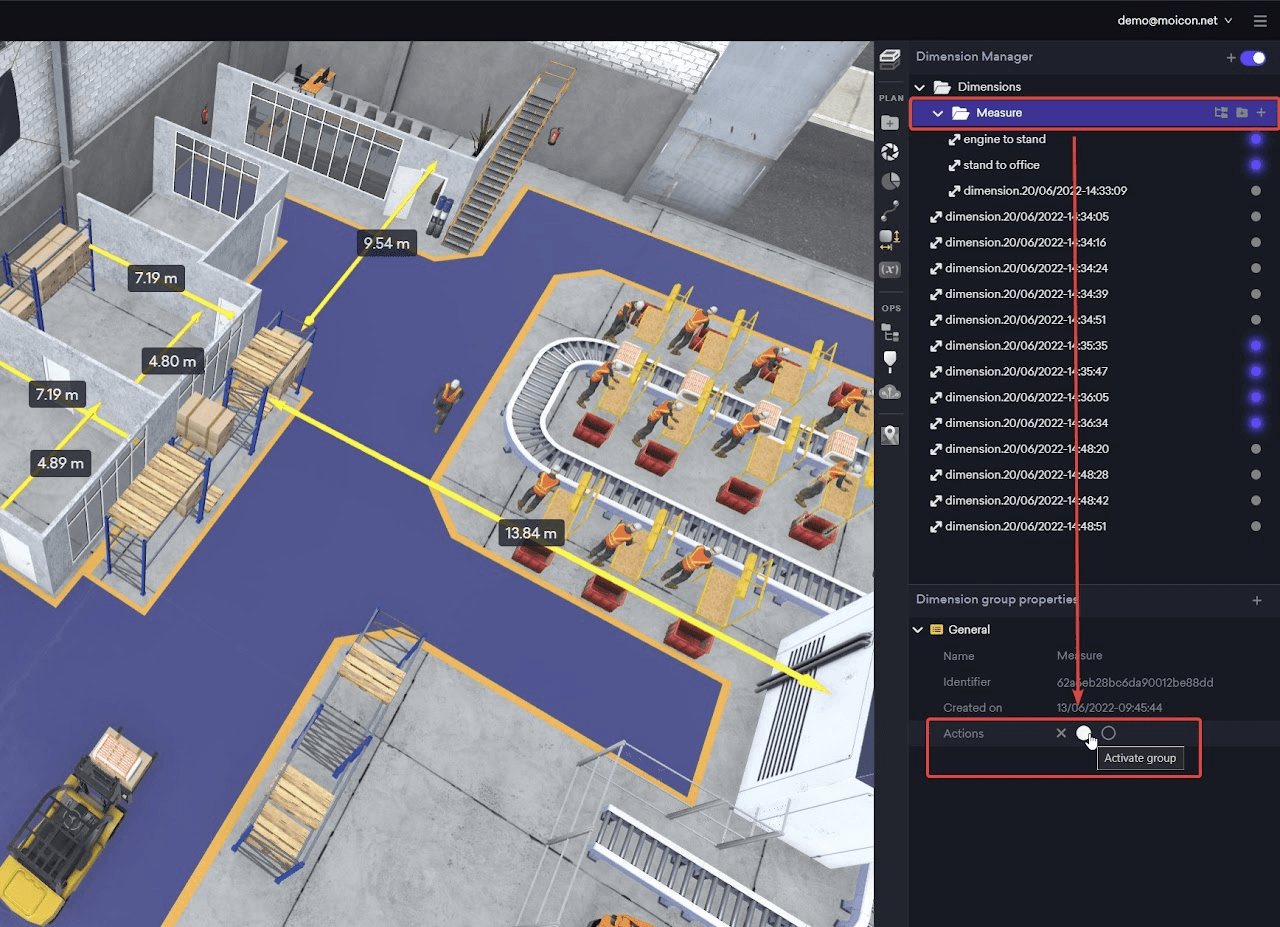

You can also activate visibility for grouped dimensions in a folder.
